제품소개
어댑터
다양한 규격과 환경에 맞춘 정밀 가공 어댑터로 배관 연결의 유연성과 안전성을 제공합니다.
원터치 홀딩(1.Touch) 및 투터치 홀딩(2.Touch) 방식으로 다양한 나사 규격과 튜브 사이즈를 지원합니다.
규격
어댑터
PF1/2-Adapter (1.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBAS1-121214 | PF1/2 inch | PF1/2 inch | 1/4 inch |
| YBAS1-1212516 | PF1/2 inch | PF1/2 inch | 5/16 inch |
| YBAS1-121238 | PF1/2 inch | PF1/2 inch | 3/8 inch |

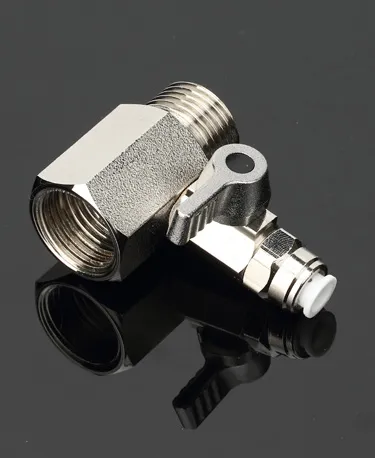

PT1/2-Adapter (1.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBPTA1-121214 | PT1/2 inch | PT1/2 inch | 1/4 inch |
| YBPTA1-1212516 | PT1/2 inch | PT1/2 inch | 5/16 inch |
| YBPTA1-121238 | PT1/2 inch | PT1/2 inch | 3/8 inch |
Rtoto-Bolt-Adapter (1.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBARTB1-121214 | PF1/2 inch | PF1/2 inch | 1/4 inch |
| YBARTB1-1212516 | PF1/2 inch | PF1/2 inch | 5/16 inch |
| YBARTB1-121238 | PF1/2 inch | PF1/2 inch | 3/8 inch |

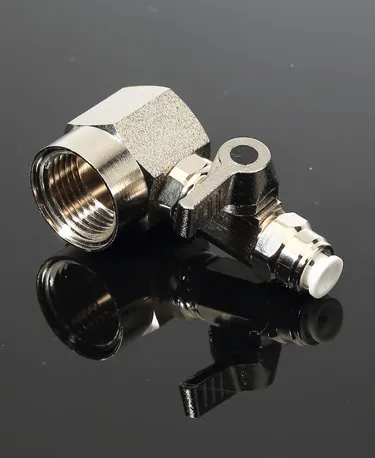

Rtoto-Nut-Adapter (1.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBARTN1-121214 | PF1/2 inch | – | 1/4 inch |
| YBARTN1-1212516 | PF1/2 inch | – | 5/16 inch |
| YBARTN1-121238 | PF1/2 inch | – | 3/8 inch |
Brass Body + Plastic Valve-Adapter
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBPA-1212 | PF1/2 inch | PF1/2 inch | 1/4 inch |
| YBPA-916 | 9/16 inch x 24 | 9/16 inch x 24 | 1/4 inch |
| YBPA-38 | 3/8 inch x 19 | 3/8 inch x 19 | 1/4 inch |
Brass Body + Plastic Valve-Sink Adapter
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBPA-DD | M24.3 x 14 | M24.3 x 14 | 1/4 inch |
| YBPA-M | M25 x 14 | M25 x 14 | 1/4 inch |
| YBPA-L | PF3/4 inch x 14 | PF3/4 inch x 14 | 1/4 inch |
| YBPA-R | W28 x 18 | W28 x 18 | 1/4 inch |

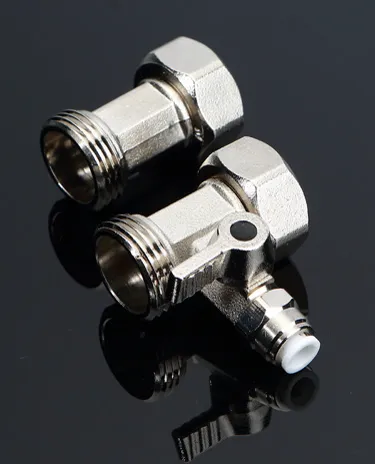

DADA (1.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBA-DD14-1 | M24.3 x 14 | M24.3 x 14 | 1/4 inch |
| YBA-DD516-1 | M24.3 x 14 | M24.3 x 14 | 5/16 inch |
| YBA-DD38-1 | M24.3 x 14 | M24.3 x 14 | 3/8 inch |
Middle (1.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBA-M14-1 | M25 x 14 | M25 x 14 | 1/4 inch |
| YBA-M516-1 | M25 x 14 | M25 x 14 | 5/16 inch |
| YBA-M38-1 | M25 x 14 | M25 x 14 | 3/8 inch |
Large (1.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBA-L14-1 | PF3/4 inch x 14 | PF3/4 inch x 14 | 1/4 inch |
| YBA-L516-1 | PF3/4 inch x 14 | PF3/4 inch x 14 | 5/16 inch |
| YBA-L38-1 | PF3/4 inch x 14 | PF3/4 inch x 14 | 3/8 inch |
Royal (1.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBA-R14-1 | W28 x 18 | W28 x 18 | 1/4 inch |
| YBA-R516-1 | W28 x 18 | W28 x 18 | 5/16 inch |
| YBA-R38-1 | W28 x 18 | W28 x 18 | 3/8 inch |
Full Brass 9/16-Adapter
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YFBA1-91614 | – | – | 1/4 inch |
| YFBA1-916516 | – | – | 5/16 inch |
| YFBA1-91638 | – | – | 3/8 inch |
Full Brass 3/8-Adapter
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YFBA1-3814 | – | – | 1/4 inch |
| YFBA1-38516 | – | – | 5/16 inch |
| YFBA1-3838 | – | – | 3/8 inch |

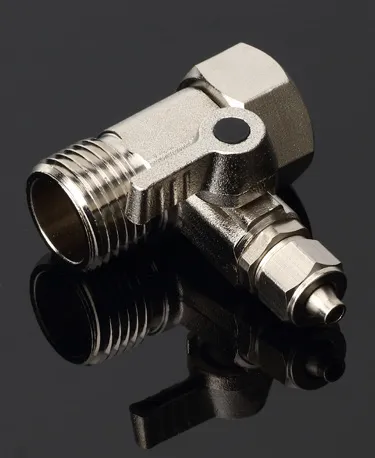

PF1/2-Adapter (2.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBAS2-121214 | PF1/2 inch | PF1/2 inch | 1/4 inch |
| YBAS2-1212516 | PF1/2 inch | PF1/2 inch | 5/16 inch |
| YBAS2-121238 | PF1/2 inch | PF1/2 inch | 3/8 inch |

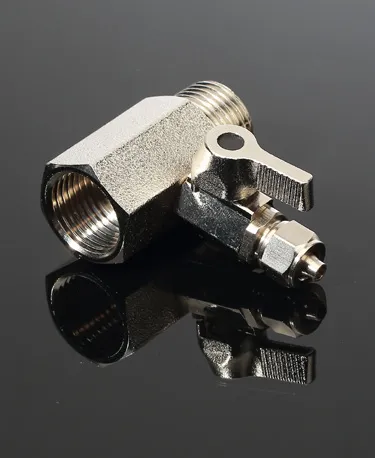

PT1/2-Adapter (2.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBPTA2-121214 | PT1/2 inch | PT1/2 inch | 1/4 inch |
| YBPTA2-1212516 | PT1/2 inch | PT1/2 inch | 5/16 inch |
| YBPTA2-121238 | PT1/2 inch | PT1/2 inch | 3/8 inch |

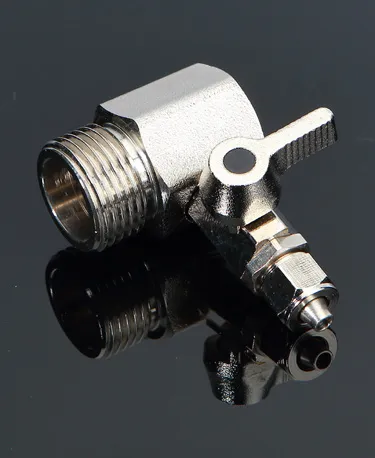

Rtoto-Bolt-Adapter (2.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBARTN2-121214 | PT1/2 inch | – | 1/4 inch |
| YBARTN2-1212516 | PT1/2 inch | – | 5/16 inch |
| YBARTN2-121238 | PT1/2 inch | – | 3/8 inch |
Rtoto-Nut-Adapter (2.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBARTN2-121214 | PF1/2 inch | – | 1/4 inch |
| YBARTN2-1212516 | PF1/2 inch | – | 5/16 inch |
| YBARTN2-121238 | PF1/2 inch | – | 3/8 inch |
All Brass Sink Adapter (2.Touch)
| Part No | A THRD | B THRD | C TUBE |
|---|---|---|---|
| YBA-DD14-2 | M24.3 x 14 | M24.3 x 14 | 1/4 inch |
| YBA-M14-2 | M25 x 14 | M25 x 14 | 1/4 inch |
| YBA-L14-2 | PF3/4 inch x 14 | PF3/4 inch x 14 | 1/4 inch |
| YBA-R14-2 | W28 x 18 | W28 x 18 | 1/4 inch |
기타 규격에 대한 주문생산 가능
